Enrichment analysis

Enrichment analysis#

Reference:

Hide code cell source


import acore
import pandas as pd

List relevant files#

  • ms2query based annotations (contains smiles and inchikeys)

  • ancova results (contains feature IDs and p-values)

fname_ms2query = "results_prepared/output_ms2query_Linked_data.tsv"
fname_ancova = "results_prepared/ancova_results.csv"
fname_pathways_map = "results_prepared/pathways_map.tsv"
fname_inchikey_to_kegg = "results_prepared/inchikey_to_kegg.csv"
fname_annotations = "results_prepared/link_compound_pathway.tsv"

Kegg annotations#

Can be downloaded from KEGG:

  • https://rest.kegg.jp/link/compound/pathway

Hide code cell source


annotations = pd.read_csv(
    fname_annotations,
    sep="\t",
    header=None,
    names=[
        "pathway_id",
        "compound_id",
    ],
)
_ = annotations.insert(1, "Source", "KEGG")
annotations["pathway_id"] = (
    annotations["pathway_id"].str.strip().str.replace("path:", "")
)
annotations["compound_id"] = (
    annotations["compound_id"].str.strip().str.replace("cpd:", "")
)
annotations.set_index("compound_id", inplace=True)
annotations
pathway_id Source
compound_id
C00022 map00010 KEGG
C00024 map00010 KEGG
C00031 map00010 KEGG
C00033 map00010 KEGG
C00036 map00010 KEGG
... ... ...
C13776 map07232 KEGG
C13777 map07232 KEGG
C13820 map07232 KEGG
C07575 map07235 KEGG
C13737 map07235 KEGG

19580 rows × 2 columns

Pathway mapping: fetch names#

pathways_map = pd.read_csv(
    fname_pathways_map, sep="\t", header=None, names=["pathway_id", "pathway_name"]
)
pathways_map.head()
pathway_id pathway_name
0 map01100 Metabolic pathways
1 map01110 Biosynthesis of secondary metabolites
2 map01120 Microbial metabolism in diverse environments
3 map01200 Carbon metabolism
4 map01210 2-Oxocarboxylic acid metabolism

exclude some generic pathways?

mask = pathways_map["pathway_name"].str.contains("pathways", case=False)
pathways_map.loc[mask]
pathway_id pathway_name
0 map01100 Metabolic pathways
32 map00720 Other carbon fixation pathways
185 map01010 Overview of biosynthetic pathways
308 map04550 Signaling pathways regulating pluripotency of ...
412 map05200 Pathways in cancer
483 map05022 Pathways of neurodegeneration - multiple diseases

Can be downloaded from KEGG:

  • https://rest.kegg.jp/link/compound/pathway

Filtering pathways#

filter some generic pathways if you want.

Hide code cell source

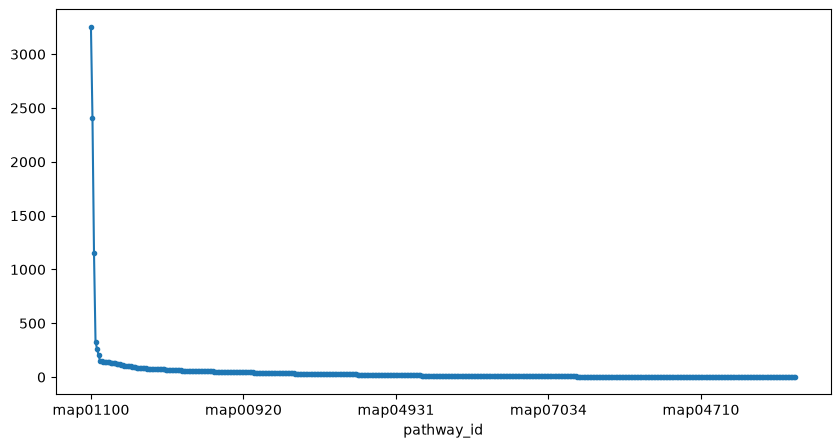

view = annotations.groupby("pathway_id").size().sort_values(ascending=False)
view.plot(kind="line", figsize=(10, 5), marker=".")
view

pathway_id
map01100   3,253
map01110   2,406
map01120   1,155
map01240     330
map01220     263
            ...
map03260       1
map03272       1
map07013       1
map07014       1
map07032       1
Length: 463, dtype: int64
_images/c0b484c098cf16e647f8cad5518e3705bd75eb57106a813f8ebc4ccd8bd06bab.png

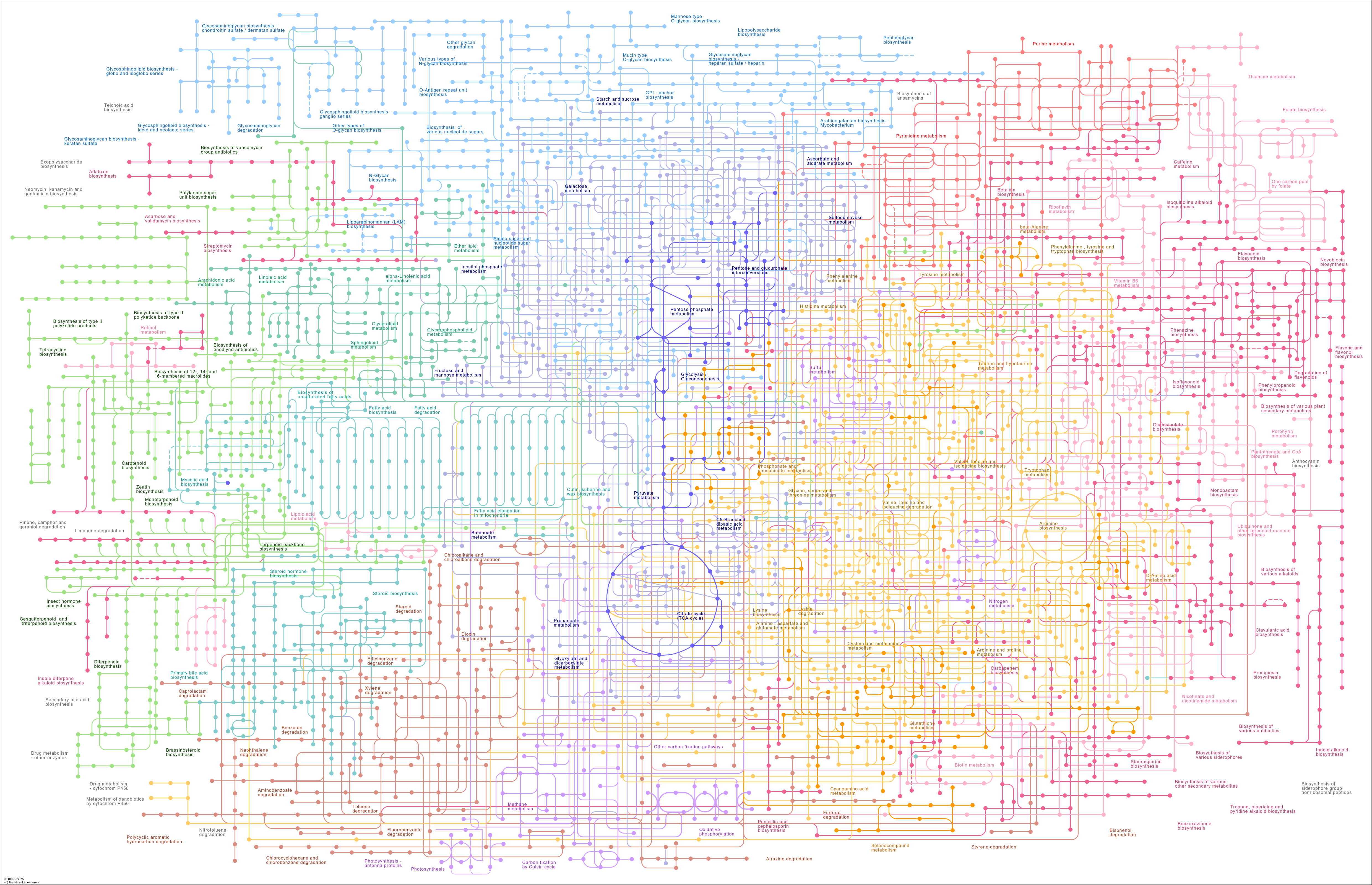

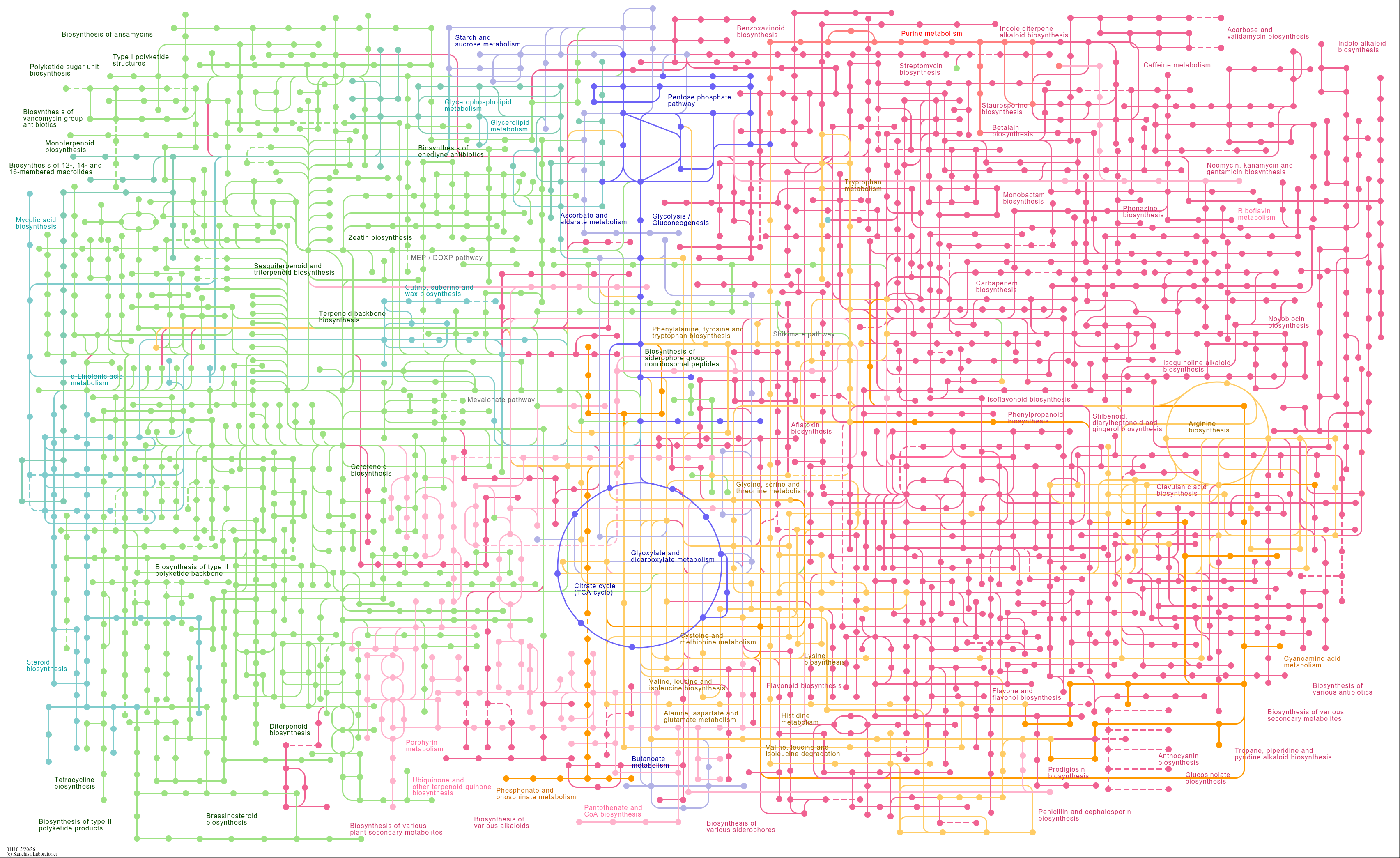

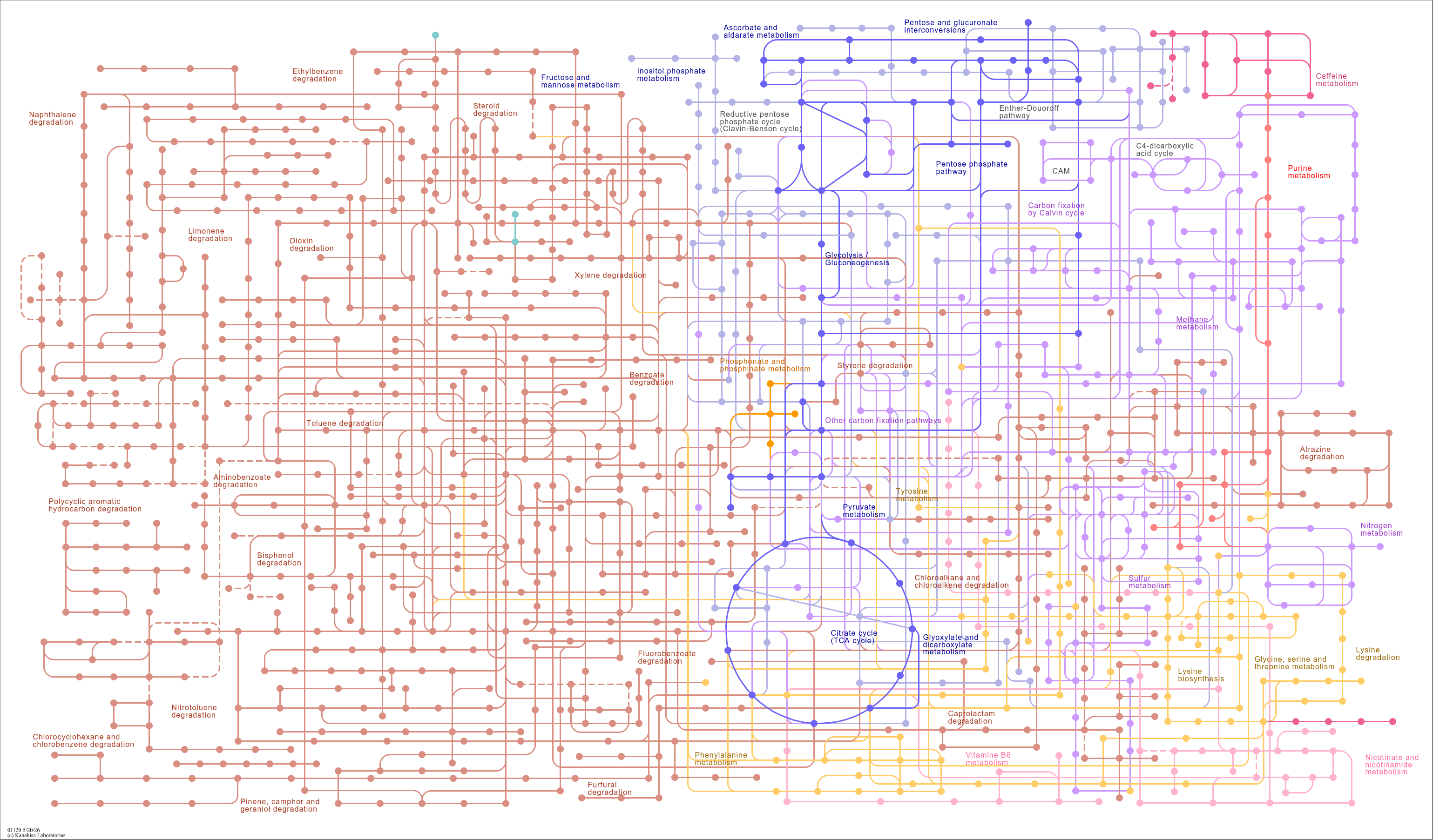

Some pathway maps:

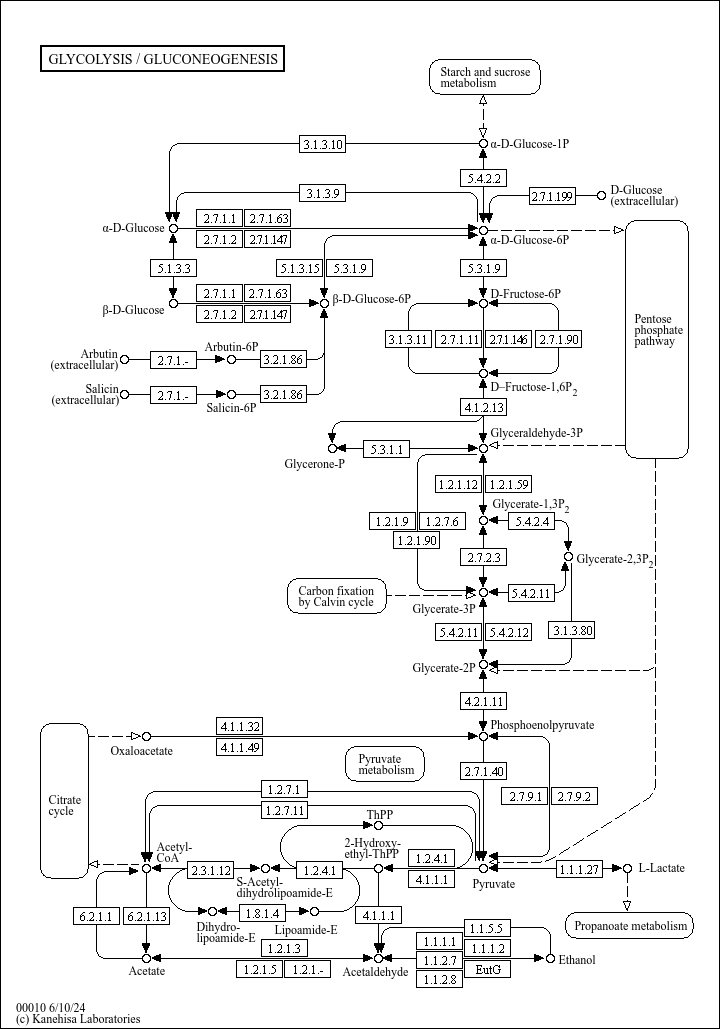

For example map00010:

Additional information for map00010 and map00030:

  • https://rest.kegg.jp/get/path:map00030+path:map00010

ms2query_results = pd.read_csv(fname_ms2query, index_col=0, sep="\t").drop_duplicates(
    subset=["inchikey", "smiles"]
)
ms2query_results.head()
query_spectrum_nr ms2query_model_prediction precursor_mz_difference precursor_mz_query_spectrum precursor_mz_analog inchikey analog_compound_name smiles cf_kingdom cf_superclass cf_class cf_subclass cf_direct_parent npc_class_results npc_superclass_results npc_pathway_results
id
4,051,789,042,754,256,385 1 0.489 78.866 414.301 493.167 UKTUQKGXNWDYAI 8-Hydroxycarapinic Acid CC1(C)C(=O)[C@@H]2C[C@@]3(O)C4=CC(=O)O[C@@H](c... Organic compounds Lipids and lipid-like molecules Prenol lipids Triterpenoids Limonoids Limonoids Triterpenoids Terpenoids
4,051,789,042,754,256,385 2 0.489 137.119 414.301 551.420 UTMFIKFVXBHDRL (R)-1-(4-benzylpiperazin-1-yl)-4-((3R,5R,8R,9S... O=C(N1CCN(CC=2C=CC=CC2)CC1)CCC(C)C3CCC4C5CCC6C... Organic compounds Lipids and lipid-like molecules Steroids and steroid derivatives Bile acids, alcohols and derivatives Dihydroxy bile acids, alcohols and derivatives NaN Steroids Terpenoids
4,051,789,042,754,256,385 3 0.483 39.909 414.301 454.210 NFUZCPRJHPTWRC 2-[2-oxo-4-(piperidylcarbonyl)hydroquinolyl]-N... Cc1cc(C)c(N=C(O)Cn2c(=O)cc(C(=O)N3CCCCC3)c3ccc... Organic compounds Organoheterocyclic compounds Quinolines and derivatives Quinoline carboxamides Quinoline carboxamides NaN Tryptophan alkaloids Alkaloids
4,051,789,042,754,256,385 4 0.409 96.699 414.301 511.000 KZVHAGNFWJIOMX Jamaicamide B CO\C(CCNC(=O)CC\C=C\C(C)CC\C(CCCC#C)=C\Cl)=C\C... Organic compounds Lipids and lipid-like molecules Fatty Acyls Fatty amides N-acyl amines NaN NaN NaN
4,051,789,042,754,256,385 6 0.409 280.057 414.301 694.358 RPJBXUNEXVNBIF 7-benzyl-11,14-dimethyl-16-(2-methylpropyl)-10... CC(C)CC1OC(=O)C2CCCN2C(=O)CCN=C(O)C(Cc2ccccc2)... Organic compounds Organic acids and derivatives Peptidomimetics Depsipeptides Cyclic depsipeptides Cyclic peptides; Depsipeptides Oligopeptides Amino acids and Peptides; Polyketides
inchikey_to_kegg = pd.read_csv(fname_inchikey_to_kegg, index_col=0).astype({"id": str})
inchikey_to_kegg
kegg_id id ms2query_model_prediction precursor_mz_difference precursor_mz_query_spectrum precursor_mz_analog analog_compound_name smiles
inchikey
YZUUTMGDONTGTN C01731 4051789042754256385 0.409 22.935 414.301 437.236 Nonaethylene glycol|2-[2-[2-[2-[2-[2-[2-[2-(2-... OCCOCCOCCOCCOCCOCCOCCOCCOCCO
KBKUJJFDSHBPPA C12048 4051789042754256385 0.409 44.929 414.301 459.230 Cinobufotalin O=C1OC=C(C=C1)C2C(OC(=O)C)C3OC34C5CCC6(O)CC(O)...
IOYZYMQFUSNATM C02429 4051789042754256385 0.409 97.137 414.301 511.438 Thonizide CCCCCCCCCCCCCCCC[N+](C)(C)CCN(Cc1ccc(OC)cc1)c1...
WVULKSPCQVQLCU C00193 4051789042754256385 0.594 0.000 414.301 414.301 glycodeoxycholic acid C[C@H](CCC(=O)NCC(=O)O)[C@H]1CCC2[C@@]1([C@H](...
WVULKSPCQVQLCU C00193 17351696255561211830 0.409 35.801 414.299 450.100 glycodeoxycholate C(C2([H])3)CC([H])(C1)C(C)(C(CC([H])(O)C(C(C([...
... ... ... ... ... ... ... ... ...
IVENSCMCQBJAKW C11713 9750239525216332245 0.378 36.001 138.053 174.054 Desisopropylatrazine CCNc1nc(N)nc(Cl)n1
PKOFBDHYTMYVGJ C06241 9750239525216332245 0.378 76.995 138.053 215.048 N-(4-sulfamoylphenyl)acetamide CC(=O)NC1=CC=C(C=C1)S(N)(=O)=O
COESHZUDRKCEPA C08640 9750239525216332245 0.346 199.850 138.053 337.903 beta-(3,5-dibromo-4-hydroxyphenyl)alanine C1=C(C=C(C(=C1Br)O)Br)CC(C(=O)O)N
YNBADRVTZLEFNH C04545 9750239525216332245 0.764 0.002 138.053 138.055 METHYL NICOTINIC ACID COC(=O)C1=CC=CN=C1
BHTRKEVKTKCXOH C08395 3043165930917491123 0.809 0.004 538.255 538.251 tauroursodeoxycholic acid C[C@H](CCC(=O)NCCS(=O)(=O)O)[C@H]1CC[C@@H]2[C@...

100 rows × 8 columns

Reload analysis of covariance (ANCOVA) results#

Hide code cell source


ancova = pd.read_csv(fname_ancova, index_col=0)
ancova.index = ancova.index.astype(str)
ancova
group1 group2 mean(group1) std(group1) mean(group2) std(group2) posthoc T-Statistics posthoc pvalue coef std err ... log2FC FC F-statistics pvalue padj correction rejected -log10 pvalue Method posthoc padj
identifier
8688552057745683191 CTR CVD 12.353 0.637 13.042 0.299 15.878 0.001 0.874 0.055 ... -0.689 0.620 252.110 0.001 0.194 FDR correction BH False 3.265 One-way ancova 0.194
4803564648587047687 CTR CVD 12.092 0.044 11.818 0.021 -13.572 0.001 -0.284 0.021 ... 0.274 1.209 184.207 0.001 0.194 FDR correction BH False 3.063 One-way ancova 0.194
122927701965791210 CTR CVD 13.368 0.809 14.097 0.306 14.470 0.001 0.957 0.066 ... -0.729 0.603 209.372 0.001 0.194 FDR correction BH False 3.145 One-way ancova 0.194
14183644523572007298 CTR CVD 11.362 0.828 12.072 0.356 21.223 0.000 0.948 0.045 ... -0.710 0.611 450.404 0.000 0.194 FDR correction BH False 3.640 One-way ancova 0.194
16452322344680482043 CTR CVD 14.418 0.588 15.296 0.362 7.963 0.004 1.054 0.132 ... -0.879 0.544 63.409 0.004 0.318 FDR correction BH False 2.384 One-way ancova 0.318
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
15322232151823440986 CTR CVD 12.649 0.145 12.693 0.164 0.027 0.980 0.003 0.106 ... -0.044 0.970 0.001 0.980 0.992 FDR correction BH False 0.009 One-way ancova 0.992
13146520139614759536 CTR CVD 11.517 0.213 11.555 0.121 0.010 0.993 0.001 0.138 ... -0.038 0.974 0.000 0.993 0.994 FDR correction BH False 0.003 One-way ancova 0.994
3927519029408433709 CTR CVD 13.941 0.112 13.919 0.142 -0.009 0.993 -0.001 0.111 ... 0.022 1.015 0.000 0.993 0.994 FDR correction BH False 0.003 One-way ancova 0.994
18162318233842994935 CTR CVD 13.669 0.374 13.720 0.325 -0.012 0.991 -0.004 0.308 ... -0.051 0.965 0.000 0.991 0.994 FDR correction BH False 0.004 One-way ancova 0.994
491936035475549414 CTR CVD 11.796 2.677 12.144 2.116 0.005 0.996 0.010 2.165 ... -0.348 0.786 0.000 0.996 0.996 FDR correction BH False 0.002 One-way ancova 0.996

897 rows × 22 columns

Let’s see if we could identify features from the differential regulations analysis using the available MS2 annotations. We will use the inchikey_to_kegg mapping from 3_enrichment_analysis_fetch_kegg.ipynb, which was pre-executed and the results stored. Rerun with new data!

Hide code cell source


inchikey_to_kegg  # .loc[ids_found_inMS2]
kegg_id id ms2query_model_prediction precursor_mz_difference precursor_mz_query_spectrum precursor_mz_analog analog_compound_name smiles
inchikey
YZUUTMGDONTGTN C01731 4051789042754256385 0.409 22.935 414.301 437.236 Nonaethylene glycol|2-[2-[2-[2-[2-[2-[2-[2-(2-... OCCOCCOCCOCCOCCOCCOCCOCCOCCO
KBKUJJFDSHBPPA C12048 4051789042754256385 0.409 44.929 414.301 459.230 Cinobufotalin O=C1OC=C(C=C1)C2C(OC(=O)C)C3OC34C5CCC6(O)CC(O)...
IOYZYMQFUSNATM C02429 4051789042754256385 0.409 97.137 414.301 511.438 Thonizide CCCCCCCCCCCCCCCC[N+](C)(C)CCN(Cc1ccc(OC)cc1)c1...
WVULKSPCQVQLCU C00193 4051789042754256385 0.594 0.000 414.301 414.301 glycodeoxycholic acid C[C@H](CCC(=O)NCC(=O)O)[C@H]1CCC2[C@@]1([C@H](...
WVULKSPCQVQLCU C00193 17351696255561211830 0.409 35.801 414.299 450.100 glycodeoxycholate C(C2([H])3)CC([H])(C1)C(C)(C(CC([H])(O)C(C(C([...
... ... ... ... ... ... ... ... ...
IVENSCMCQBJAKW C11713 9750239525216332245 0.378 36.001 138.053 174.054 Desisopropylatrazine CCNc1nc(N)nc(Cl)n1
PKOFBDHYTMYVGJ C06241 9750239525216332245 0.378 76.995 138.053 215.048 N-(4-sulfamoylphenyl)acetamide CC(=O)NC1=CC=C(C=C1)S(N)(=O)=O
COESHZUDRKCEPA C08640 9750239525216332245 0.346 199.850 138.053 337.903 beta-(3,5-dibromo-4-hydroxyphenyl)alanine C1=C(C=C(C(=C1Br)O)Br)CC(C(=O)O)N
YNBADRVTZLEFNH C04545 9750239525216332245 0.764 0.002 138.053 138.055 METHYL NICOTINIC ACID COC(=O)C1=CC=CN=C1
BHTRKEVKTKCXOH C08395 3043165930917491123 0.809 0.004 538.255 538.251 tauroursodeoxycholic acid C[C@H](CCC(=O)NCCS(=O)(=O)O)[C@H]1CC[C@@H]2[C@...

100 rows × 8 columns

regex_filter = "pval|padj|reject|FC"
ids_found_inMS2 = inchikey_to_kegg["id"].unique().tolist()
ids_found_inMS_also_in_ancova = list(set(ids_found_inMS2).intersection(ancova.index))
ancova.loc[ids_found_inMS_also_in_ancova].filter(regex=regex_filter).sort_values(
    "pvalue"
)
posthoc pvalue log2FC FC pvalue padj rejected -log10 pvalue posthoc padj
identifier
4051789042754256385 0.025 1.598 3.027 0.025 0.562 False 1.596 0.562
7939233295536706460 0.067 1.033 2.046 0.067 0.712 False 1.176 0.712
356441345885270616 0.396 -0.096 0.935 0.396 0.854 False 0.402 0.854

Make the few identified features significant for illustration purposes.

ancova.loc[ids_found_inMS_also_in_ancova, "pvalue"] = 0.01
ancova.loc[ids_found_inMS_also_in_ancova].filter(regex=regex_filter).sort_values(
    "pvalue"
)
posthoc pvalue log2FC FC pvalue padj rejected -log10 pvalue posthoc padj
identifier
7939233295536706460 0.067 1.033 2.046 0.010 0.712 False 1.176 0.712
4051789042754256385 0.025 1.598 3.027 0.010 0.562 False 1.596 0.562
356441345885270616 0.396 -0.096 0.935 0.010 0.854 False 0.402 0.854

Let’s manually update some compound IDs for the few features we identified.

  • choose one compound per feature

Hide code cell source


inchikey_to_kegg_of_interest = inchikey_to_kegg.loc[
    inchikey_to_kegg["id"].isin(ids_found_inMS_also_in_ancova)
]
inchikey_to_kegg_of_interest
kegg_id id ms2query_model_prediction precursor_mz_difference precursor_mz_query_spectrum precursor_mz_analog analog_compound_name smiles
inchikey
YZUUTMGDONTGTN C01731 4051789042754256385 0.409 22.935 414.301 437.236 Nonaethylene glycol|2-[2-[2-[2-[2-[2-[2-[2-(2-... OCCOCCOCCOCCOCCOCCOCCOCCOCCO
KBKUJJFDSHBPPA C12048 4051789042754256385 0.409 44.929 414.301 459.230 Cinobufotalin O=C1OC=C(C=C1)C2C(OC(=O)C)C3OC34C5CCC6(O)CC(O)...
IOYZYMQFUSNATM C02429 4051789042754256385 0.409 97.137 414.301 511.438 Thonizide CCCCCCCCCCCCCCCC[N+](C)(C)CCN(Cc1ccc(OC)cc1)c1...
WVULKSPCQVQLCU C00193 4051789042754256385 0.594 0.000 414.301 414.301 glycodeoxycholic acid C[C@H](CCC(=O)NCC(=O)O)[C@H]1CCC2[C@@]1([C@H](...
WVVSZNPYNCNODU C03194 356441345885270616 0.528 39.930 366.116 326.186 (6aR,9S)-N-[(2S)-1-hydroxypropan-2-yl]-7-methy... C[C@@H](CO)NC(=O)[C@@H]1CN([C@@H]2CC3=CNC4=CC=...
QSLJIVKCVHQPLV C02962 356441345885270616 0.409 269.312 366.116 635.428 h_61_17_epioxandrolone O=C1OC[C@@]2(C)C(CCC3C2CC[C@@]4(C)C3CC[C@@]4(C...
HSCJRCZFDFQWRP C06393 356441345885270616 0.409 199.294 366.116 565.410 UDP-glucopyranoside C1=CN(C(=O)NC1=O)C2C(C(C(O2)COP(=O)(O)OP(=O)(O...
GHCZAUBVMUEKKP C10358 7939233295536706460 0.567 0.001 472.304 472.303 GLYCOCHENODEOXYCHOLATE CC(CCC(=O)NCC(=O)O)C1CCC2C1(CCC3C2C(CC4C3(CCC(...
rename_index = {
    "4051789042754256385": "C12048",
    "7939233295536706460": "C10358",
    "356441345885270616": "C03194",  # C02962
}
ancova = ancova.rename(index=rename_index)

ancova.loc[rename_index.values()].filter(regex=regex_filter).sort_values("pvalue")
posthoc pvalue log2FC FC pvalue padj rejected -log10 pvalue posthoc padj
identifier
C12048 0.025 1.598 3.027 0.010 0.562 False 1.596 0.562
C10358 0.067 1.033 2.046 0.010 0.712 False 1.176 0.712
C03194 0.396 -0.096 0.935 0.010 0.854 False 0.402 0.854

Enrichment analysis#

We will use the annotations fetched from KEGG to perform the enrichment analysis.

Hide code cell source


annotations = annotations.rename_axis("identifier").reset_index()
annotations
identifier pathway_id Source
0 C00022 map00010 KEGG
1 C00024 map00010 KEGG
2 C00031 map00010 KEGG
3 C00033 map00010 KEGG
4 C00036 map00010 KEGG
... ... ... ...
19,575 C13776 map07232 KEGG
19,576 C13777 map07232 KEGG
19,577 C13820 map07232 KEGG
19,578 C07575 map07235 KEGG
19,579 C13737 map07235 KEGG

19580 rows × 3 columns

ret = acore.enrichment_analysis.run_up_down_regulation_enrichment(
    regulation_data=ancova.rename_axis("identifier").reset_index(),
    annotation=annotations,
    identifier="identifier",
    annotation_col="pathway_id",
    pval_col="pvalue",
    min_detected_in_set=1,
    lfc_cutoff=0.0001,
)
ret

No significant enrichment found with the given parameters. Returning an empty DataFrame.
direction comparison terms identifiers foreground background foreground_pop background_pop pvalue padj rejected
0 downregulated CTR~CVD map00260 C03194 1 0 46 897 0.051 0.051 False
1 downregulated CTR~CVD map00860 C03194 1 0 46 897 0.051 0.051 False
2 downregulated CTR~CVD map01100 C03194 1 0 46 897 0.051 0.051 False
ancova.loc[rename_index.values()].filter(regex=regex_filter).sort_values("pvalue")
posthoc pvalue log2FC FC pvalue padj rejected -log10 pvalue posthoc padj
identifier
C12048 0.025 1.598 3.027 0.010 0.562 False 1.596 0.562
C10358 0.067 1.033 2.046 0.010 0.712 False 1.176 0.712
C03194 0.396 -0.096 0.935 0.010 0.854 False 0.402 0.854

Why do we only see one compound?

annotations.loc[annotations.identifier.isin(inchikey_to_kegg_of_interest.kegg_id)]
identifier pathway_id Source group
187 C02962 map00051 KEGG NaN
1,182 C03194 map00260 KEGG foreground
4,929 C03194 map00860 KEGG foreground
9,483 C02962 map01100 KEGG NaN
9,521 C03194 map01100 KEGG foreground
14,499 C02962 map01120 KEGG NaN
