Submit samples for analysis to DNA Foundry

Benchling has replaced one of its modules (“Requests”) with another new module (“Workflow”). To discover how to submit samples for analysis to the DNA Foundry team (for Nanopore GridION analysis) using Workflows, follow this guide.

Grant access to DNA Foundry to your Project

Add DNA Foundry Benchling Team to the list of collaborators in your Project to enable the analysts to access the samples you are going to register.

  1. Navigate to your Benchling Project settings ⚙️

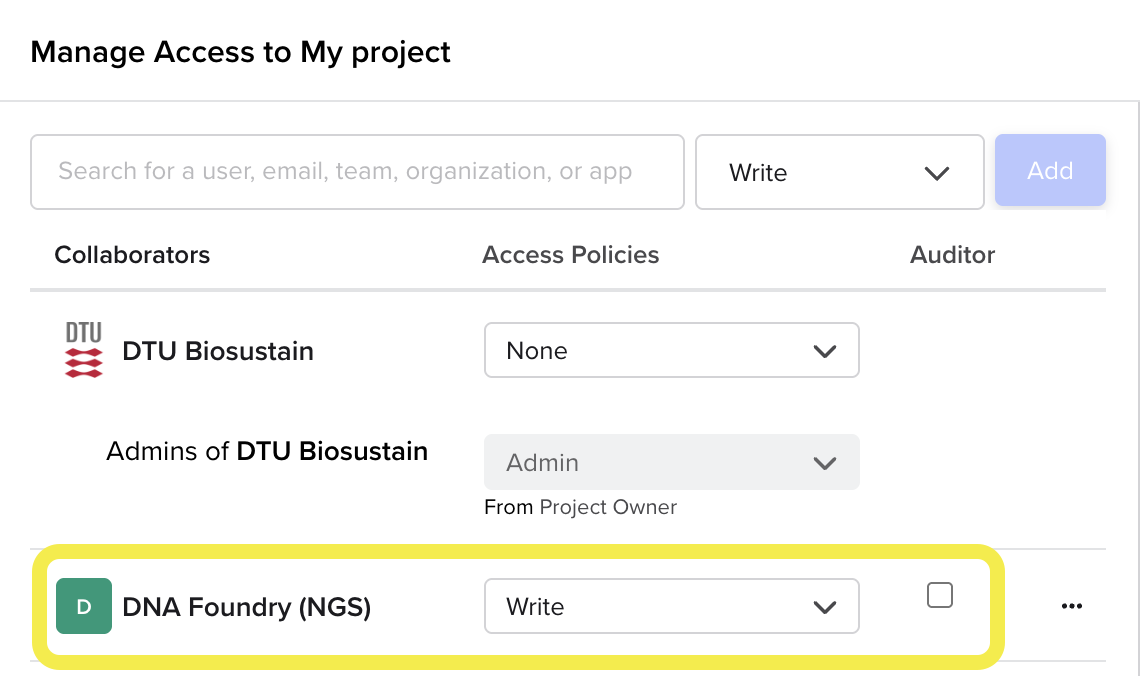

  2. Add the DNA Foundry Benchling team to the list of collaborators (with “WRITE” access)

grant access to DNA Foundry team

Save edits to the settings by clicking “Done”.

grant access to DNA Foundry team

→ How to add a user or a Team as collaborator in your project

Register samples directly in your Notebook Entry

In order to register samples to submit to DNA Foundry, you can follow a Sub-template created by LIMS support for this purpose.

Follow this video to learn how to do it:

Summary of the steps:

  1. Navigate to your experiment Notebook Entry

  2. Insert the sub-template “Nanopore Sample Submission” in the Entry

→ You can choose between different samples storage options: Plate, Box, single Vials.

  1. Fill-in the registration and inventory tables that appeared in your Notebook Entry with the required metadata.

  2. Copy (Command+C / CTRL+C) the newly-registered samples entities from the last table

Create a Workflow

In order to submit your newly-registered samples for analysis to the DNA Foundry team, you need to create a Workflow and attach the samples within it. The Workflow to submit samples to the DNA Foundry is labelled with “DNF”.

Follow this video to learn how to do it:

VERY IMPORTANT!!

When creating a workflow, paste all the samples in one single cell in the “DNF Nanopore Samples” column (as showed in the screenshot downbelow, and in the video). If you have sample-level metadata, please add them in the previous step (when you are registering the samples in your Notebook entry).

Paste samples in one cell

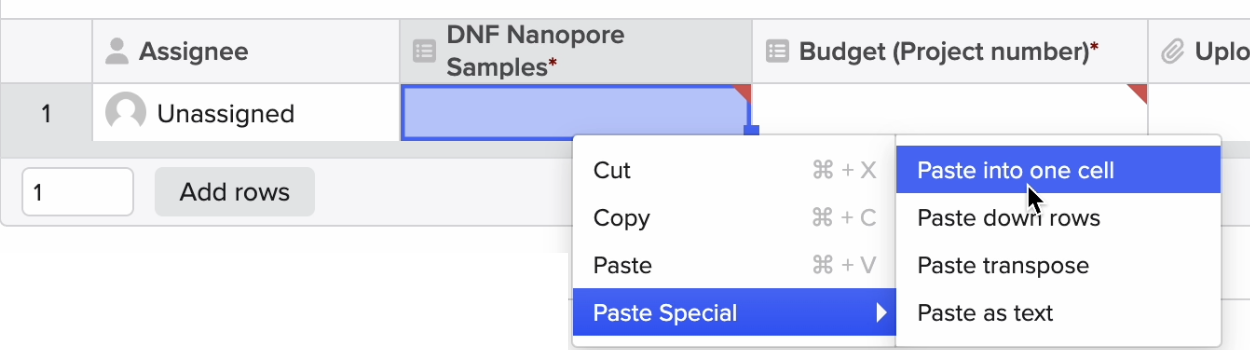

You can achieve it by using the “Paste special” button:

Use Paste Special to paste all samples in one cell

Summary of the steps:

  1. Create a Workflow of the relevant type.

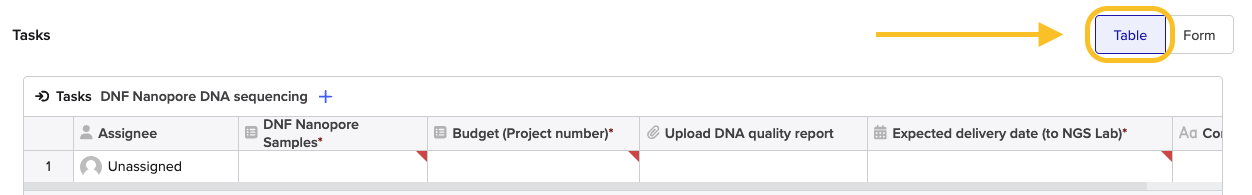

  2. Select “Table” format for your Task table

create a Workflow

  1. Paste the samples entities in a single DNF Nanopore Samples column cell

Use Paste Special to paste all samples in one cell

  1. Fill-in the remaining metadata fields.

→ Remember to specify the correct “Project number” and to save the Workflow in the relevant Project folder (the video’s Project number and Project folder are used as examples).

  1. Click on “Create”. The analyst will receive an email and therefore will be informed about your submission.

List of available Workflows

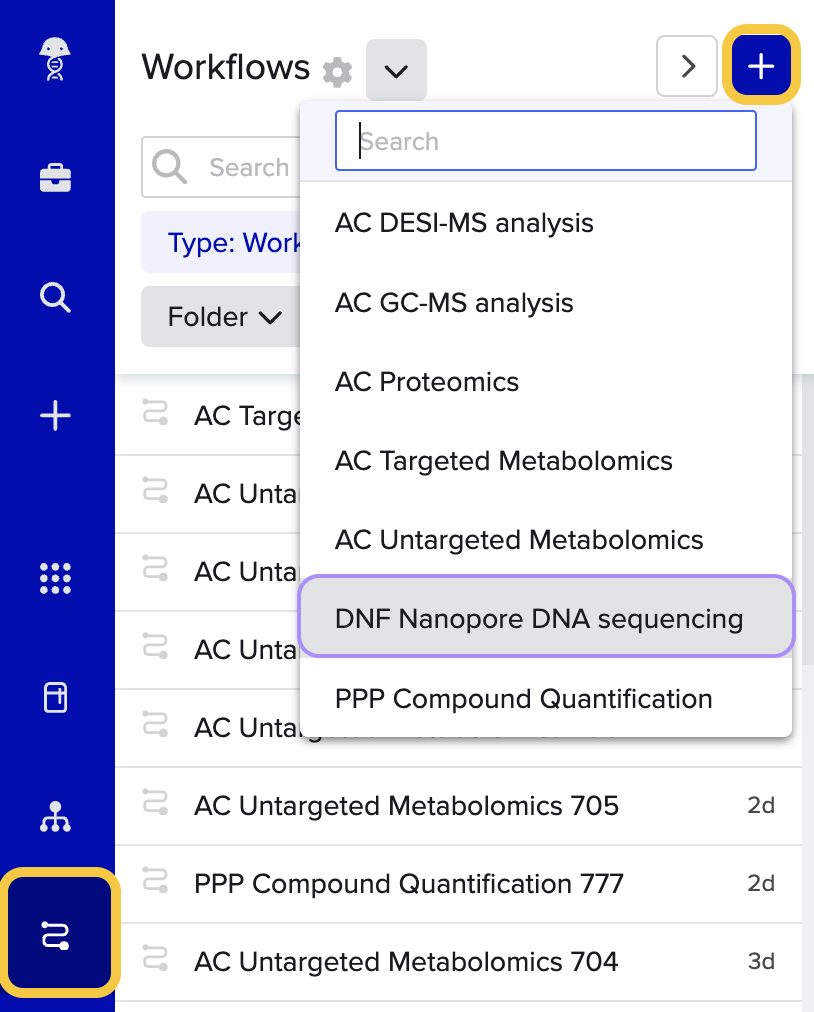

This is the available list of Workflows (currently only one for the DNA Foundry Team):

create a Workflow



If you have any question, don’t hesitate to contact us at lims_support@biosustain.dtu.dk.
